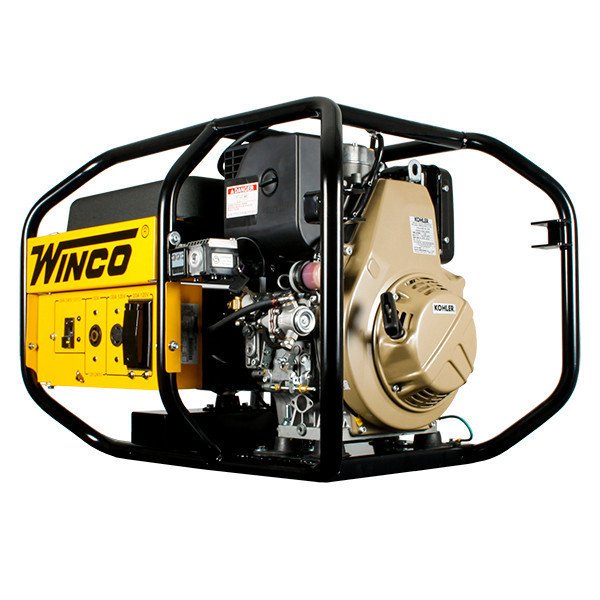

WINCO W6010KE-18/A 5000W 3ph-277/480V Electric Start Portable Diesel Generator
$5,028.00
The WINCO W6010KE-18/A is a diesel portable generator for buyers who need verified output, electrical layout, and physical size before selecting jobsite or service equipment. WINCO documents this model with diesel fuel, a Kohler engine, 277/480V three-phase output, and a receptacle package that includes GFCI 120V outlets and a 30A L21-30 full-power receptacle. The description below replaces the imported catalog wording with manufacturer-sourced specifications, practical buying details, and official documents. Use the table to compare output, amperage, voltage regulation, emissions classification, dimensions, and weight against the power requirements of the worksite or vehicle installation.
- Brand
- WINCO
- Catalog SKU
- 24006-013
- Availability
- Estimated delivery: 7–14 business days
Check wattage, fuel type, phase, voltage, runtime, outlets, noise rating, transfer-switch compatibility, SKU, price, and shipping requirements.
- Generators
- Power backup
- Accessories
Product Overview
The WINCO W6010KE-18/A is a diesel portable generator for buyers who need verified output, electrical layout, and physical size before selecting jobsite or service equipment. WINCO documents this model with diesel fuel, a Kohler engine, 277/480V three-phase output, and a receptacle package that includes GFCI 120V outlets and a 30A L21-30 full-power receptacle. The description below replaces the imported catalog wording with manufacturer-sourced specifications, practical buying details, and official documents. Use the table to compare output, amperage, voltage regulation, emissions classification, dimensions, and weight against the power requirements of the worksite or vehicle installation.
Key Features
- Three-phase portable diesel generator configuration.
- 5,000 running watts and 6,000 starting watts.
- 277/480V three-phase output with 17.3 running amps.
- AVR voltage regulation listed by WINCO.
- Full-power NEMA L21-30 30A receptacle with plug included.
- Kohler diesel engine with EPA Prime emissions classification.
Technical Specifications
| Brand | WINCO |
|---|---|
| Model | W6010KE-18/A |
| MPN | 24006-013 |
| Product type | Three-phase portable diesel generator |
| Starting watts | 6,000 W |
| Running watts | 5,000 W |
| Running amps | 17.3 |
| Voltage output | 277/480V three phase |
| Voltage regulation | AVR |
| 120V receptacles | (2) NEMA 5-20 20A GFCI |
| Full-power receptacle | (1) NEMA L21-30R 30A; L21-30 plug included |
| Engine brand | Kohler |
| Fuel | Diesel |
| Emissions | EPA Prime |
| Dimensions | 34.25 in L x 24.5 in W x 23.4 in H |
| Weight | 268 lb |
| Unit warranty | 3 Year Commercial |
| Assembled in | USA |
Best For
- 277/480V three-phase jobsite equipment.
- Commercial field service with diesel power requirements.
- Outdoor work using a compact high-voltage generator.
- Applications that match the documented 17.3A output range.
Product Documents
Shipping Information
Free shipping included. Orders are usually delivered within 7-14 business days after order confirmation.
